Sequential Circuits Custom Prophet 10

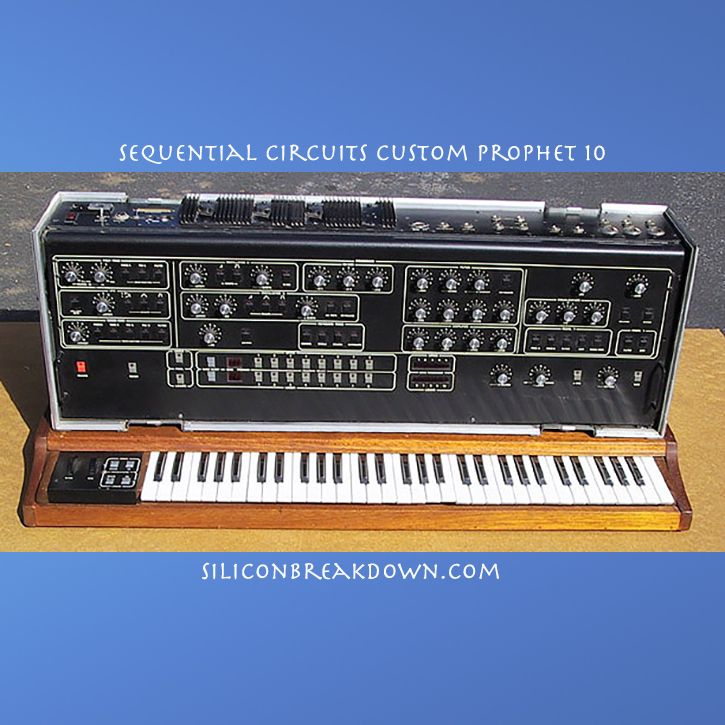

Here are some shots of my friend Riley's custom built Sequential Circuits Prophet 10. He worked at Sequential for many years

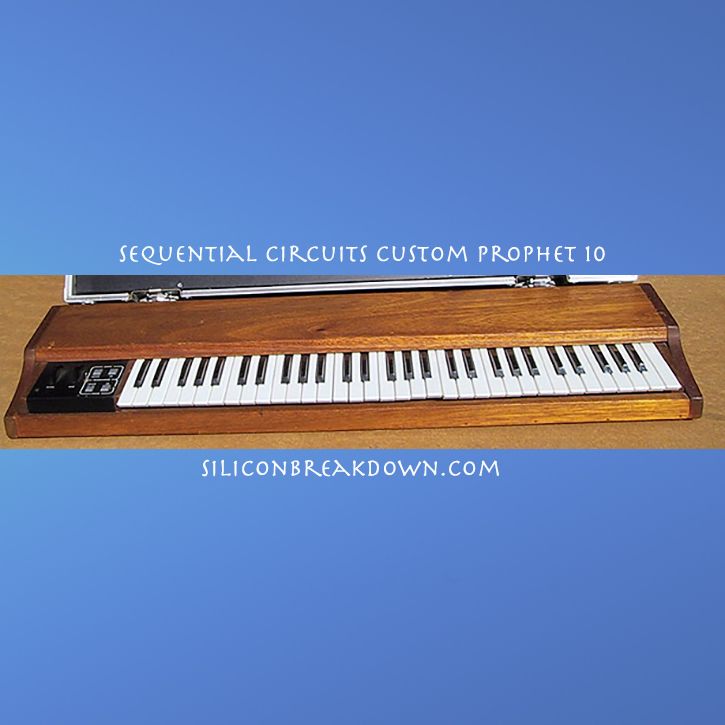

Custom built keyboard

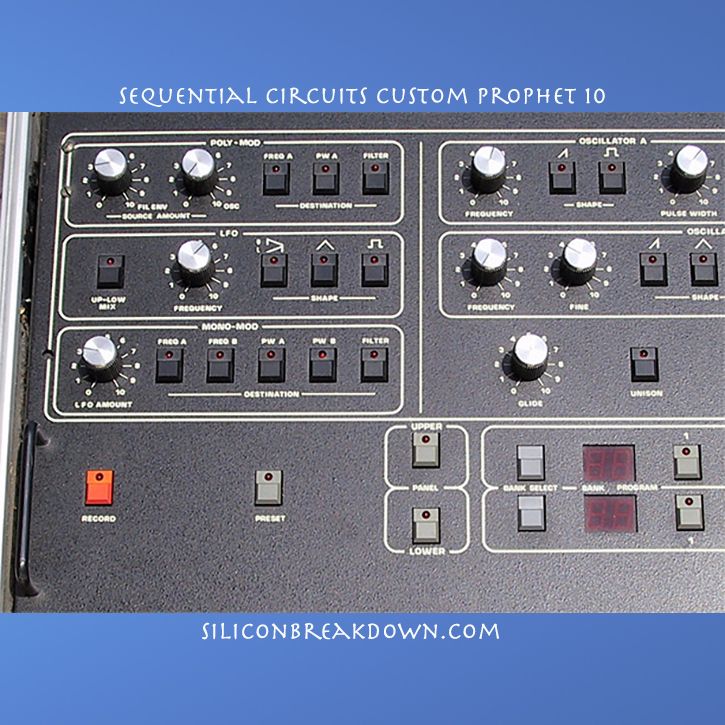

Closeup shots going left to right. Above Poly mod and LFO controls

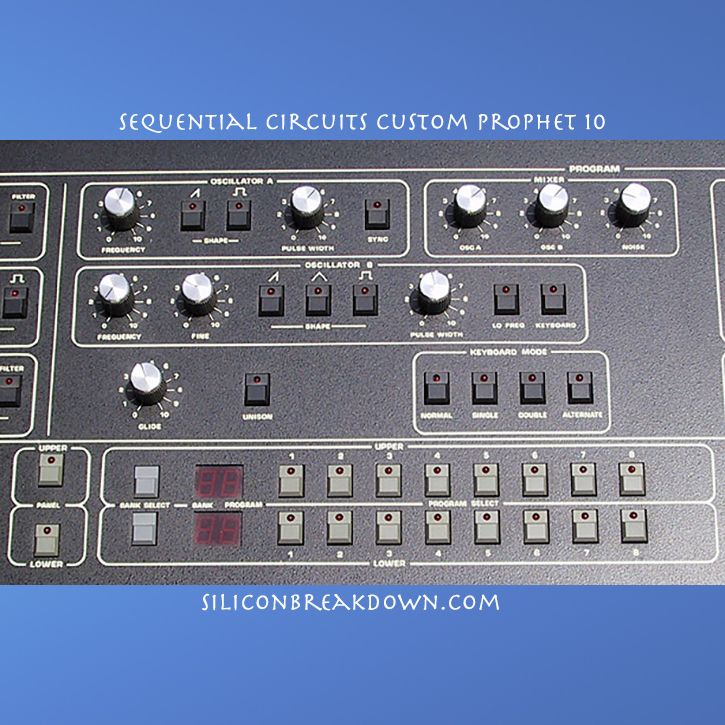

Middle shot -- Oscillators and patch selectors

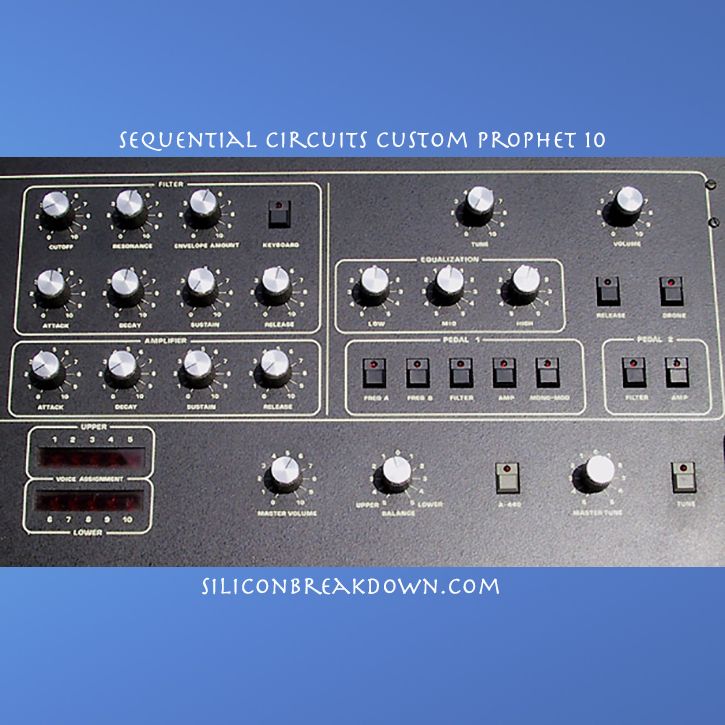

Far right of Prophet 10 Differences from the Prophet 5-- Equalization controls (low mid high- right second row), Pedal 1 and Pedal 2 settings

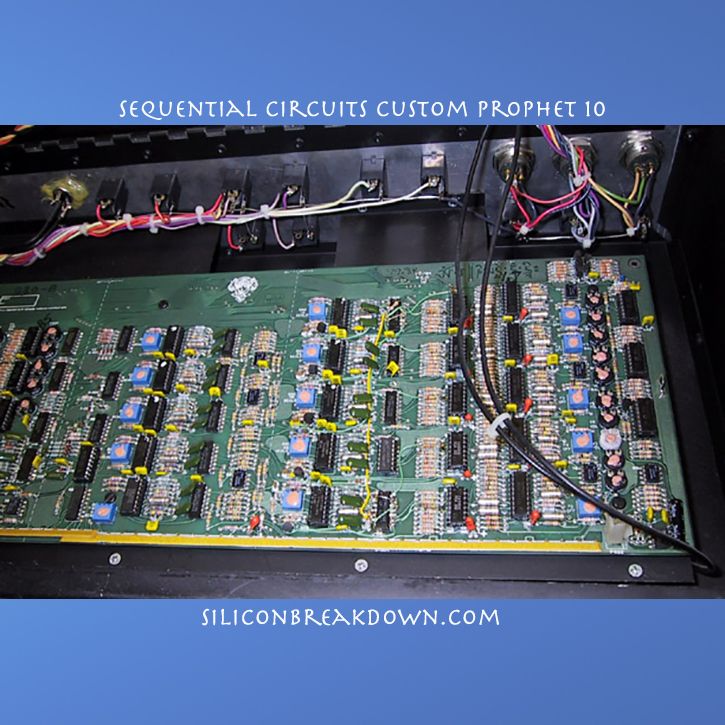

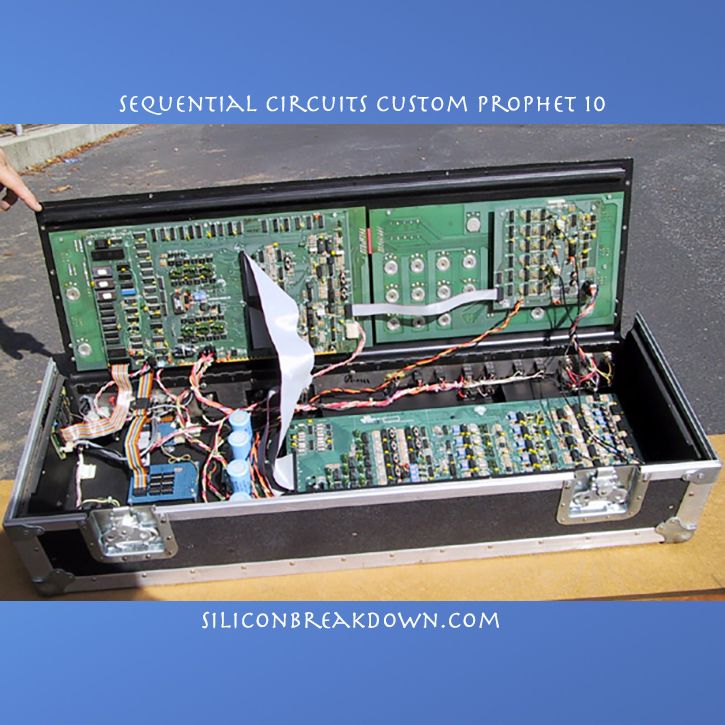

Prophet 10 opened up
Main voice board is on the right side of the case. One more layer below this one. Each layer is basically a Prophet 5's chip set

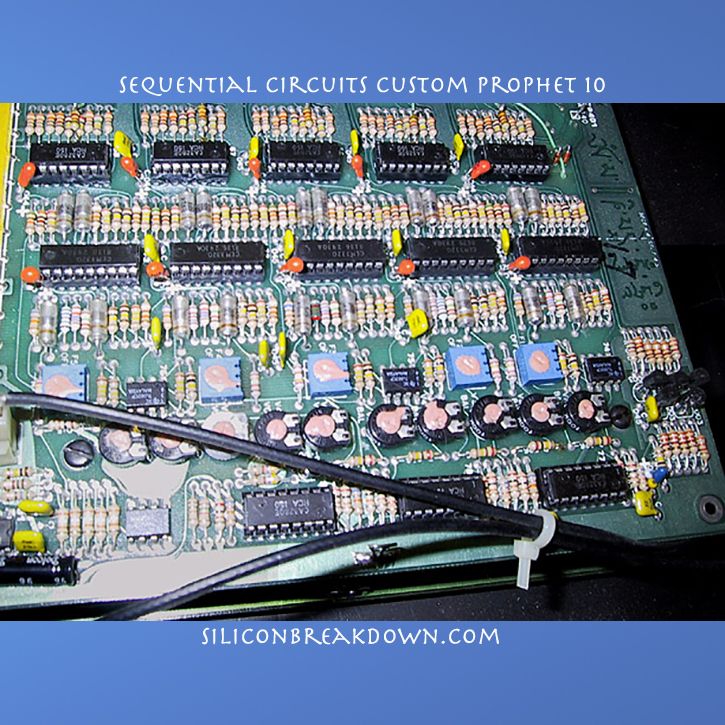

Zooming in we see 5 CEM 3320 filters in a row. 2nd row of 5 chips (looking at far right of main board)

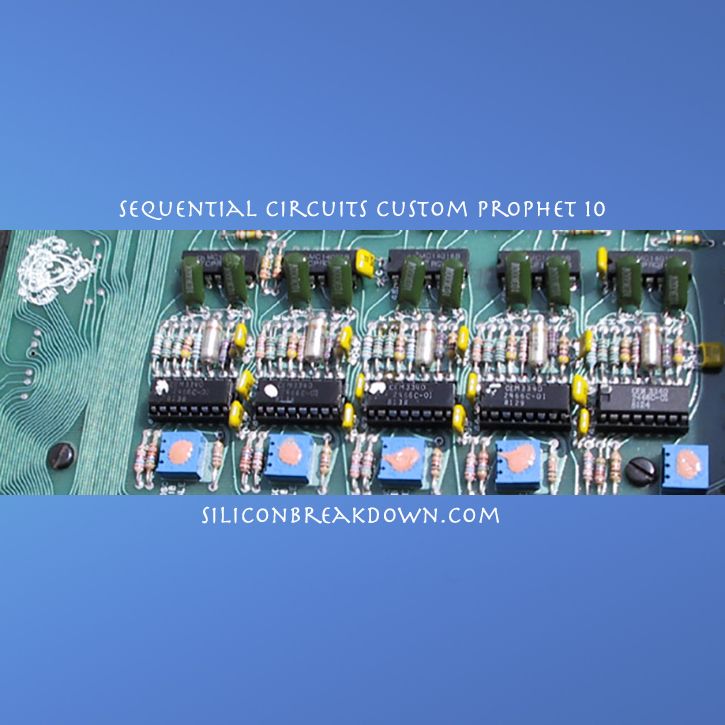

From a different angle a row of 5 CEM 3340 oscillators
